SL402 PB Toilet partition

SL402 shown above

Pin & Barrel Toilet Partition Hinges

Toilet Partition Part Number Interchange

SL402

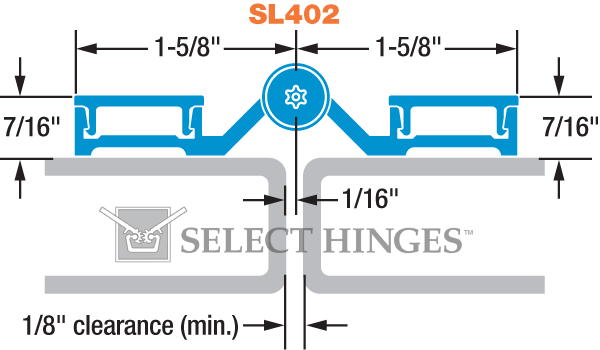

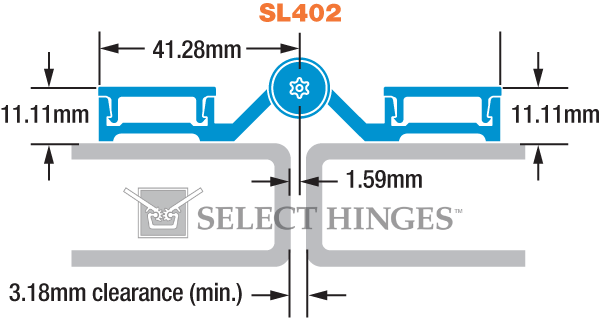

SL402 imperial diagram SL402 metric diagram

Full surface toilet partition hinge. Clear anodized aluminum. Spring-loaded, adjustable. Tamper-resistant Torx Head end caps to adjust spring tension. Safety-lift option. One-way shoulder bolt option.

For doors 36"914.4 mm wide, weighing up to 80 lb. 36.29 kg. Consult with factory on doors wider than 36".914.4 mm.

54"1372 mm length.

SL902

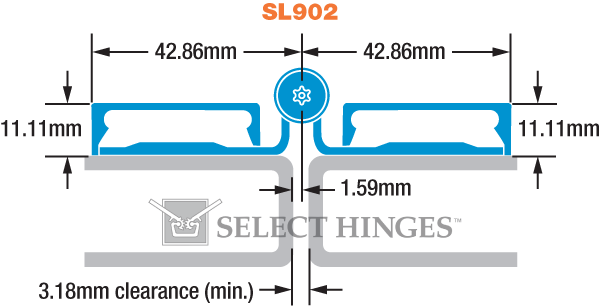

SL902 imperial diagram SL902 metric diagram

Full surface toilet partition hinge. 14 gauge stainless steel. Spring-loaded, adjustable. Tamper-resistant Torx Head end caps to adjust spring tension.

For doors 36"914.4 mm wide, weighing up to 80 lb. 36.29 kg. Consult with factory on doors wider than 36".914.4 mm.

54"1372 mm and 57"1448 mm lengths.
