ATW (Accessible Through-Wire)

Accessible through-wire options

ATW Sell Sheet PDF ATW spec sheet PDF ATW info sheet PDF

The SELECT ATW electrically modified concealed hinge's fully integrated design lets you access a wire problem and make your repair — in less than five minutes.

PREP:
SELECT geared continuous hinges can be prepared for accessible electric through-wires to provide continuous current. Through-wires available in sets of 4, 8 or 12.

Per conductor: 12V-24V AC/DC at 3-6 amps. Ultra-flexible 22 gauge wire with 8" leads per leaf. Molex® connectors included. Extra-long lead extensions (48" max.) available.

LOCATION:
Specify the dimension from the top of the hinge to each ATW centerline. Hinge is installed flush with the top of the door.

Refer to the templates at https://select-hinges.com/specifications/templates to choose from available ATW locations.

HANDING:
Specify the handing of each door requiring the ATW. Handing not required on SL11 and SL27.

ORDER:
Use suffix “ATW,” plus the number of wires required. Specify location of each ATW and handing (if required).

Example: SL24 HD600 83" Clear ATW4 44-1/16" from top of hinge to centerline, RH.

AVAILABILITY:
Available on models SL11, SL12, SL14, SL18, SL24, SL26, SL27, SL31, SL44, SL48 and SL84.

LEAD TIME:
48 Hours (on most orders).

WARRANTY:
6 years.

INSTALLATION:
Click here for ATW Installation Instructions.

IMPORTANT:
SELECT Products Limited does not recommend preparing door and frame for ATW before receipt of hinge. If door and frame must be prepared before receipt of hinge, contact factory for special template.

ATWRP (Accessible Through-Wire Removable Panel)

ATWRP spec sheet
PDF

Accessible through-wire Removable Panel options

PREP:
The SELECT ATWRP is a retrofit option available to electrify an existing concealed hinge or to fix a failed electronic entryway.  Through-wires available in sets of 4, 8 or 12.

Per conductor: 12V-24V AC/DC at 3-6 amps. Ultra-flexible 22 gauge wire with 8" leads per leaf. Molex® connectors included. Extra-long lead extensions (48" max.) available.

ORDER:
State "ATWRP," plus the number of wires required.  Specify hinge model for which the panel is needed, and Clear (CL), Dark Bronze (BR) or Black (BK) finish.

Example: ATWRP8 for SL24 Clear.

AVAILABILITY:
Available for models SL11, SL12, SL14, SL18, SL24, SL26, SL27, SL31, SL44, SL48 and SL84.

LEAD TIME:
48 Hours (on most orders).

WARRANTY:
The ATWRP has no warranty.

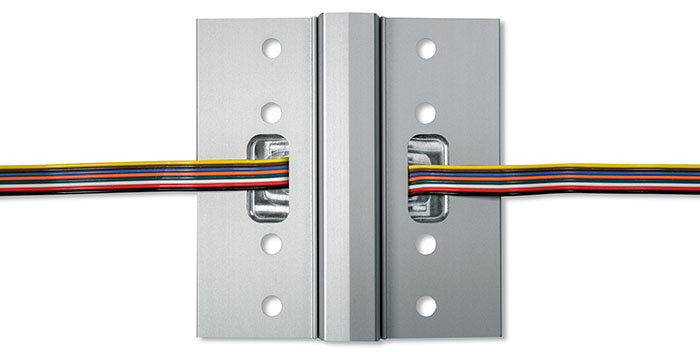

 ATWRP8 shown below on SL11 Clear.

ATWADPT (Accessible Through-Wire 12-Wire Lead Adaptors with Molex® Connectors)

ATWADPT spec sheet
PDF

Accessible through-wire adaptor options

PREP:
ATW Adaptors with 12-wire Molex® connectors are available in 4 lengths:  8", 24", 48" and 120".

ORDER:
State "ATWADPT," plus the length required in inches (8, 24, 48 or 120).

Example: ATWADPT8

LEAD TIME:
48 Hours (on most orders).

WARRANTY:
The ATWADPT has no warranty.
