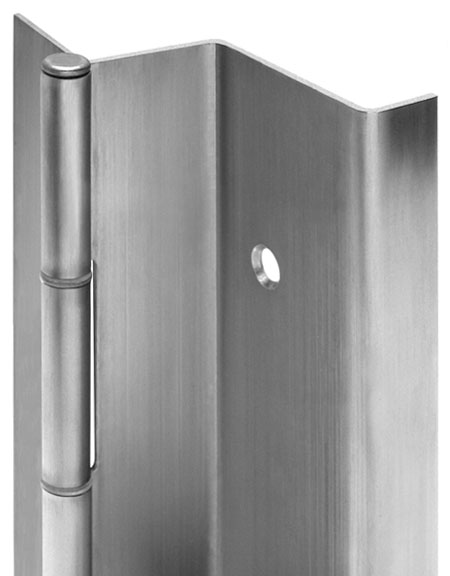

SL310 PB swing clear

SL311 shown above

Pin & Barrel Swing Clear Continuous Hinges

Pin & Barrel Part Number Interchange

SL310

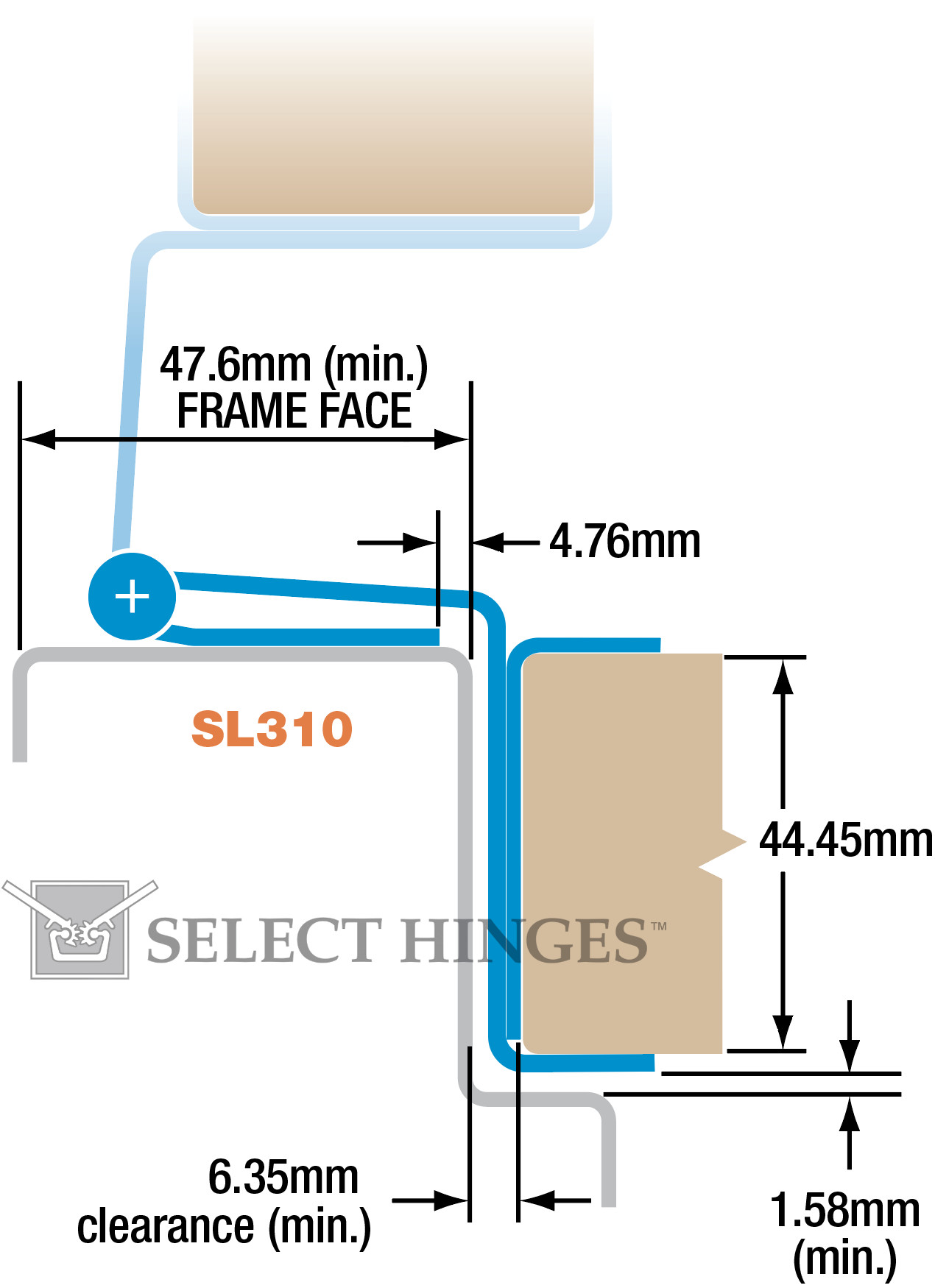

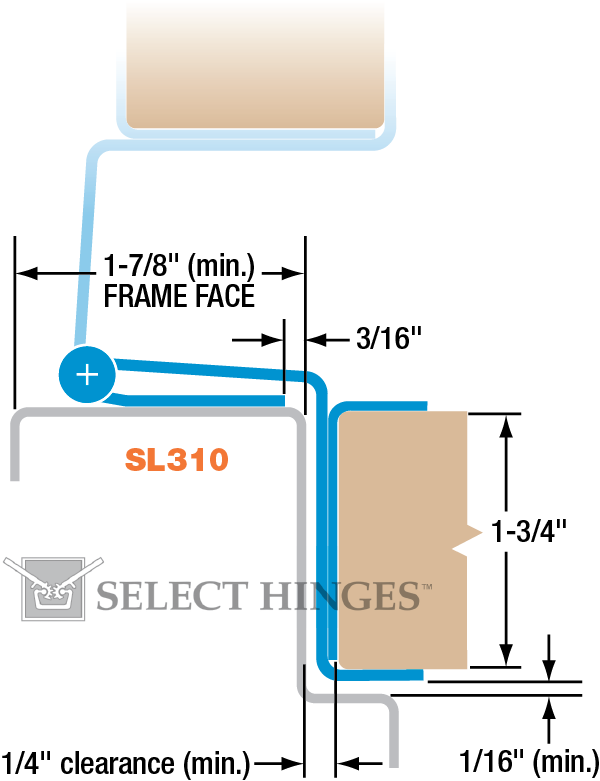

SL310 imperial diagram SL310 metric diagram

Stainless steel hinge with swing-clear action.   Door guard.   Adjusta-Screw™ fasteners (right-hand thread) available at extra cost.   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL310 pin & barrel continuous hinges are BHMA Grade 1 certified.

SL311

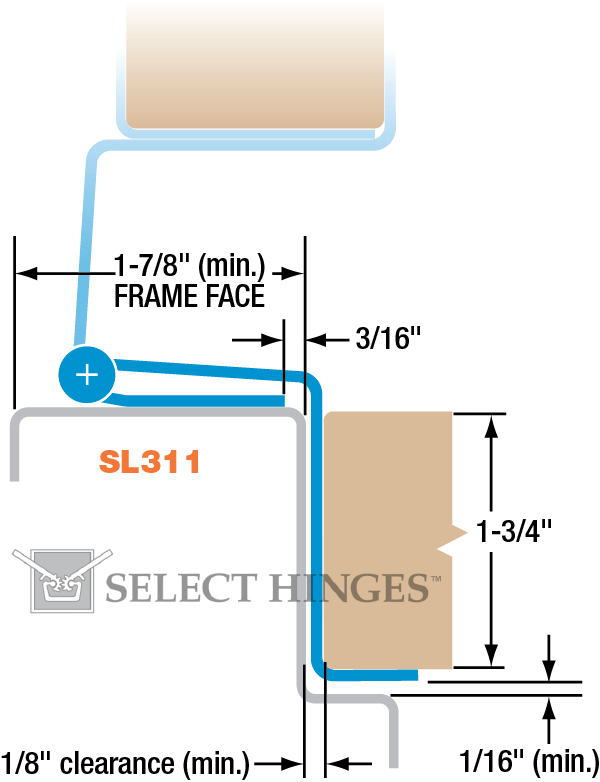

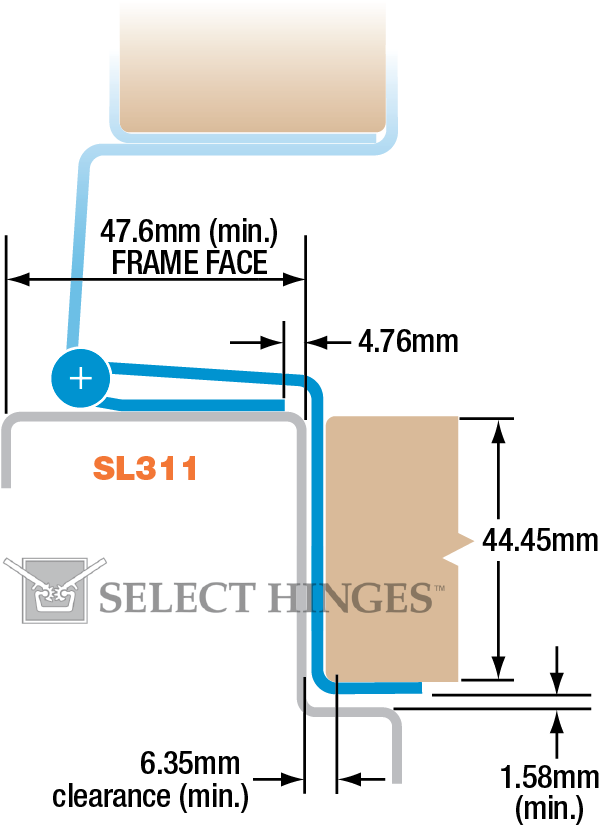

SL311 imperial diagram SL311 metric diagram

Stainless steel hinge with swing-clear action.   Edge guard.   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL311 pin & barrel continuous hinges are BHMA Grade 1 certified.

Pin & Barrel Warranty

SELECT brand Pin & Barrel Continuous Hinges are guaranteed to be free of defects in materials and workmanship for a period of 25 years. No claims for faulty or improper installation, consequent damages, repairs or back charges will be allowed. This warranty does not cover defects or damage resulting from vandalism, abuse, improper maintenance, improper storage, shipping or handling, alteration or removal of the factory-applied lubricant, anodizing or painting of product in the field.
