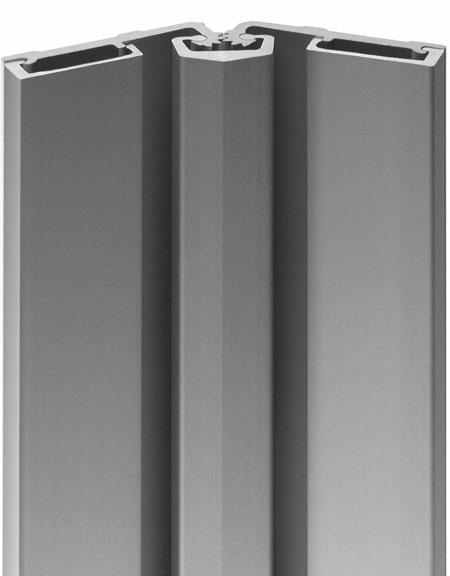

SL60 Toilet partition

SL60 shown above

Geared Toilet Partition Hinges

Download hinge template.

Toilet Partition Part Number Interchange

SL60

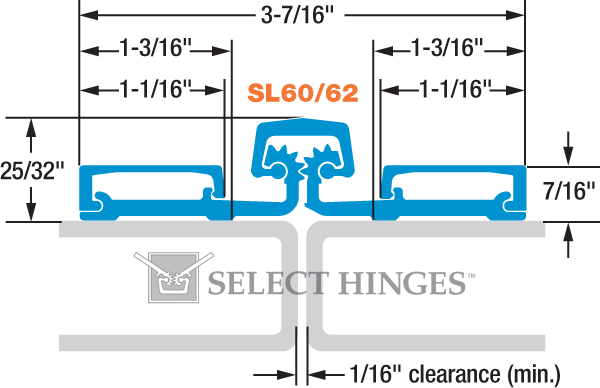

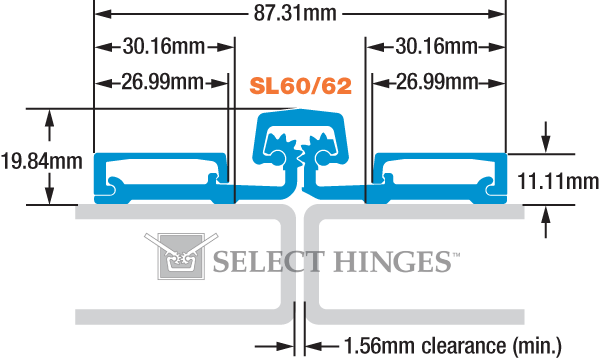

SL60 imperial diagram SL60 metric diagram

Full surface toilet partition hinge. Clear anodized aluminum. For doors 36"914.4 mm wide (max), weighing up to 80 lb. 36.29 kg. Opens to 180° . 57"1448 mm length.

All SL60 geared continuous hinges are BHMA Grade 1 certified.

SL62

SL62 imperial diagram SL62 metric diagram

Full surface toilet partition hinge. Clear anodized aluminum. For doors 36"914.4 mm wide (max), weighing up to 80 lb.36.29 kg. Self-closing. Opens to 120°. 57"1448 mm length.
