SL300 (P&B Concealed)

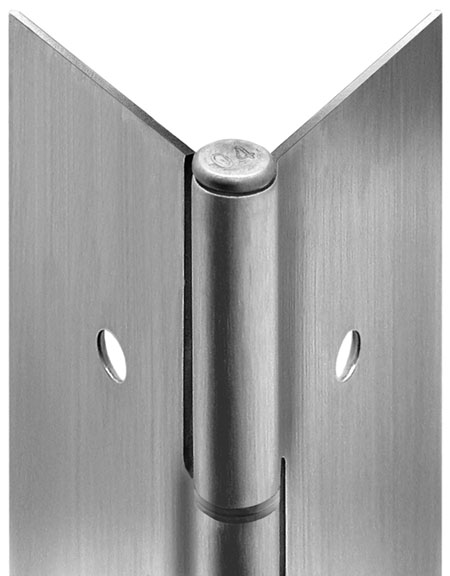

SL300 shown above

Pin & Barrel Concealed Continuous Hinges

Download hinge templates.

Pin & Barrel Part Number Interchange

SL200

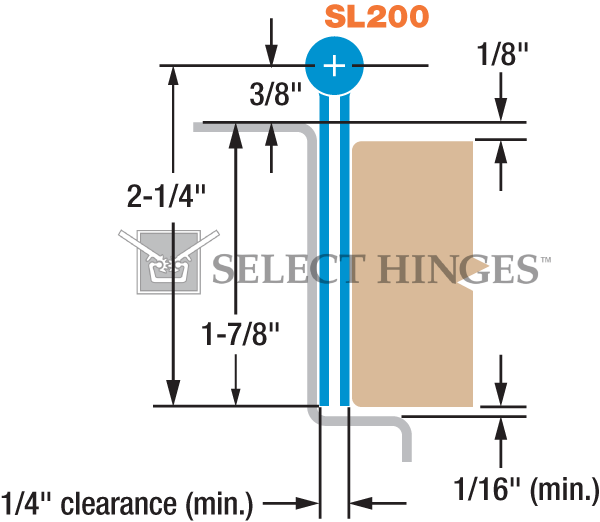

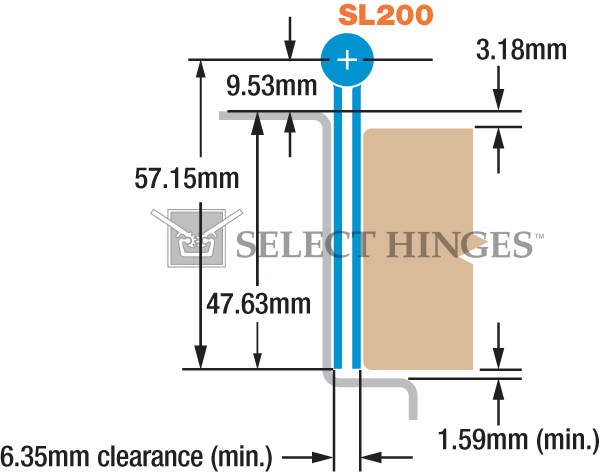

SL200 imperial diagram SL200 metric diagram

Zinc plated carbon steel.   1/8"3.17 mm door inset.   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL200 pin & barrel continuous hinges are BHMA Grade 1 certified.

SL300

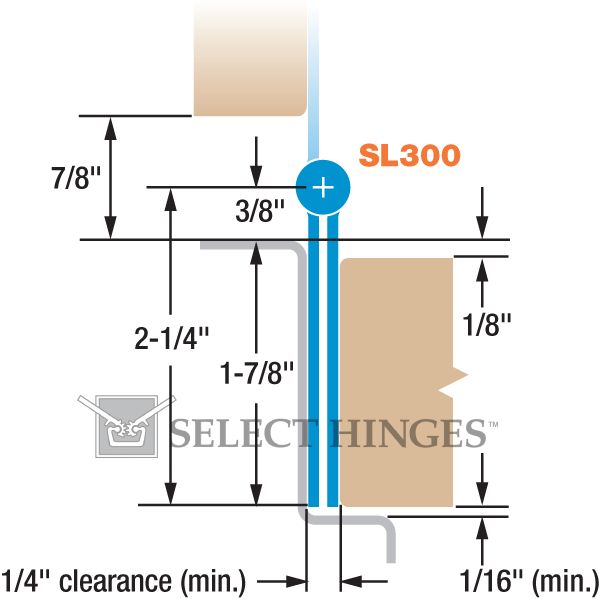

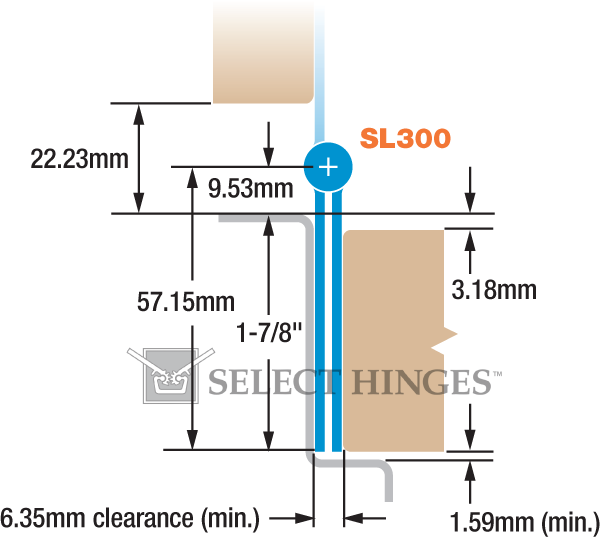

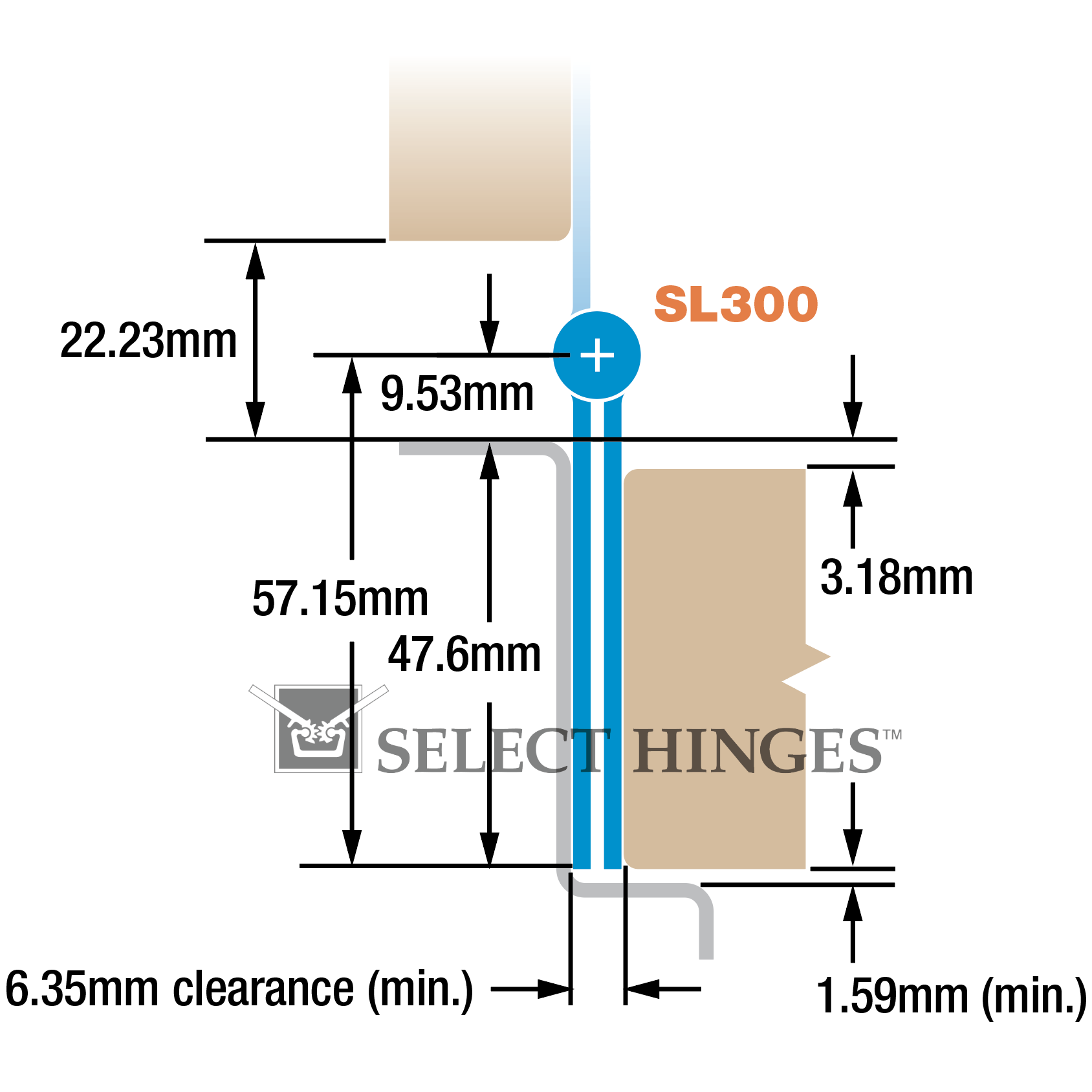

SL300 imperial diagram SL300 metric diagram

Stainless steel.   1/8"3.17 mm door inset.   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL300 pin & barrel continuous hinges are BHMA Grade 1 certified.

SL305

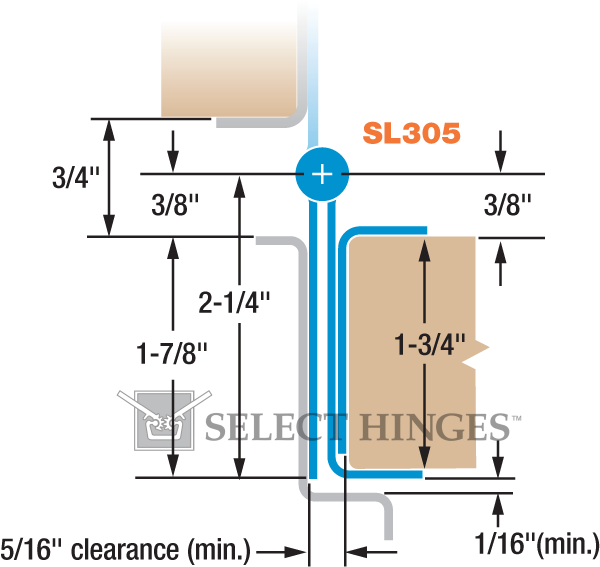

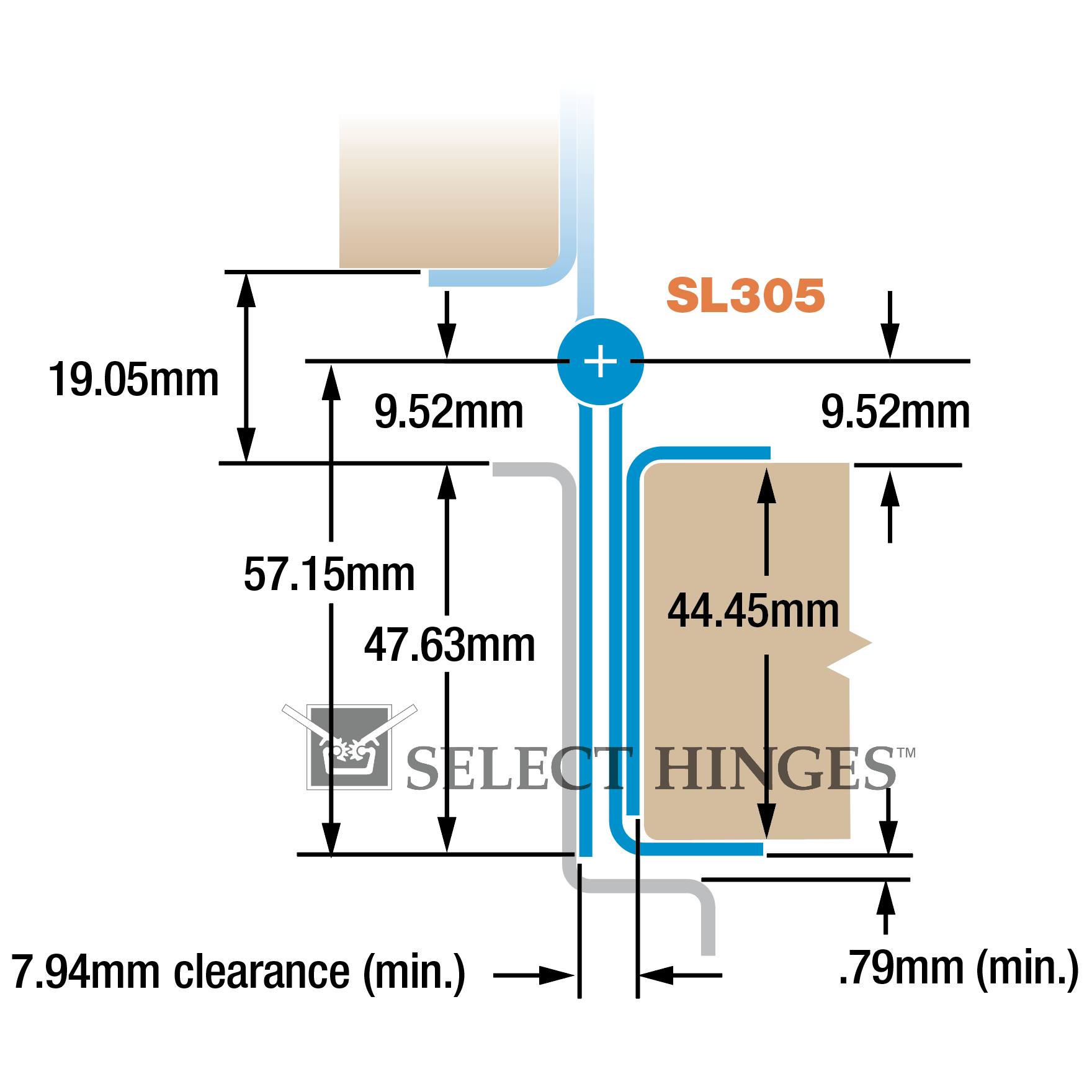

SL305 imperial diagram SL305 metric diagram

Stainless steel hinge with door guard.   Adjusta-Screw™ fasteners (right-hand thread) available at extra cost.   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL305 pin & barrel continuous hinges are BHMA Grade 1 certified.

SL315

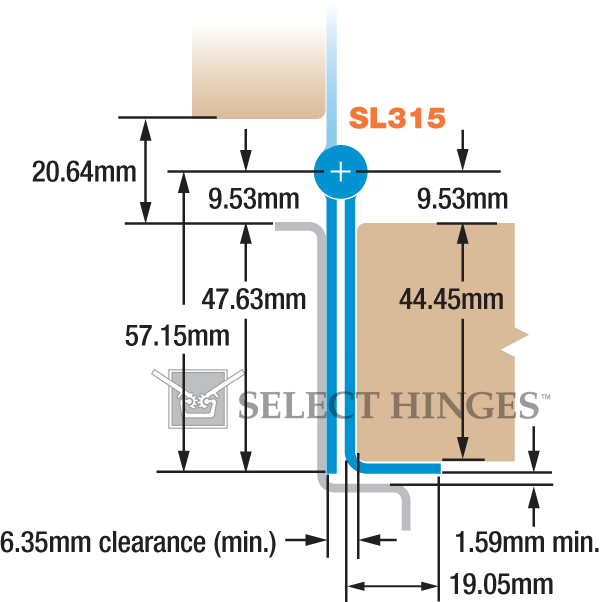

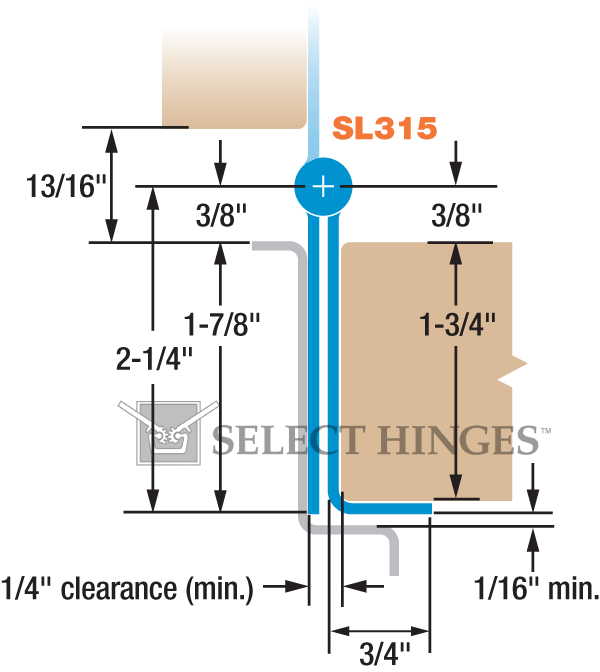

SL315 imperial diagram SL315 metric diagram

Stainless steel with edge guard.   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL315 pin & barrel continuous hinges are BHMA Grade 1 certified.

SL3500

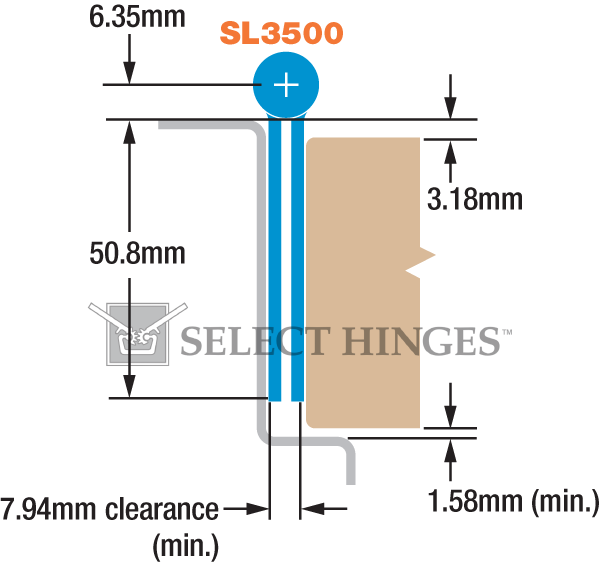

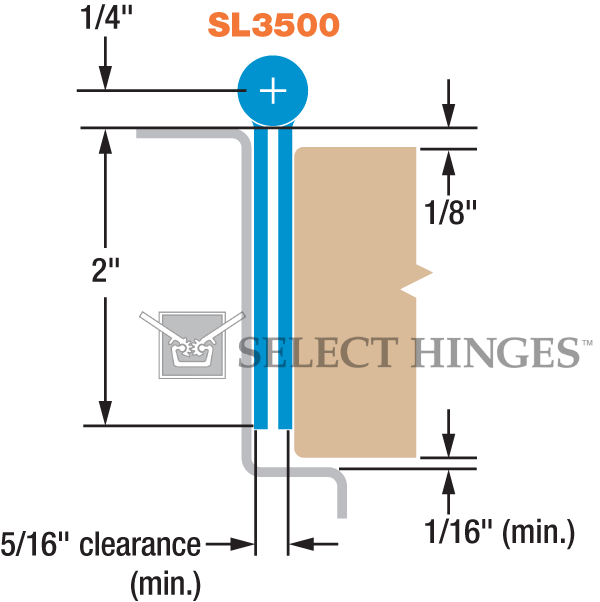

SL3500 imperial diagram SL3500 metric diagram

Extra heavy duty 12 gauge stainless steel.   Meets ASTM F-1450A Abuse Test requirements.   Hospital Tip Prep standard.   1/8"3.17 mm door inset.   For 1-3/4"44.45 mm to 2-1/4"57.15 mm doors weighing up to 900 lb.408.23 kg., 48"1219.2 mm max. door width.

SL3500 pin & barrel continuous hinges are BHMA Grade 1 certified.

Pin & Barrel Warranty

SELECT brand Pin & Barrel Continuous Hinges are guaranteed to be free of defects in materials and workmanship for a period of 25 years. No claims for faulty or improper installation, consequent damages, repairs or back charges will be allowed. This warranty does not cover defects or damage resulting from vandalism, abuse, improper maintenance, improper storage, shipping or handling, alteration or removal of the factory-applied lubricant, anodizing or painting of product in the field.
