SL302 (P&B Full Surf)

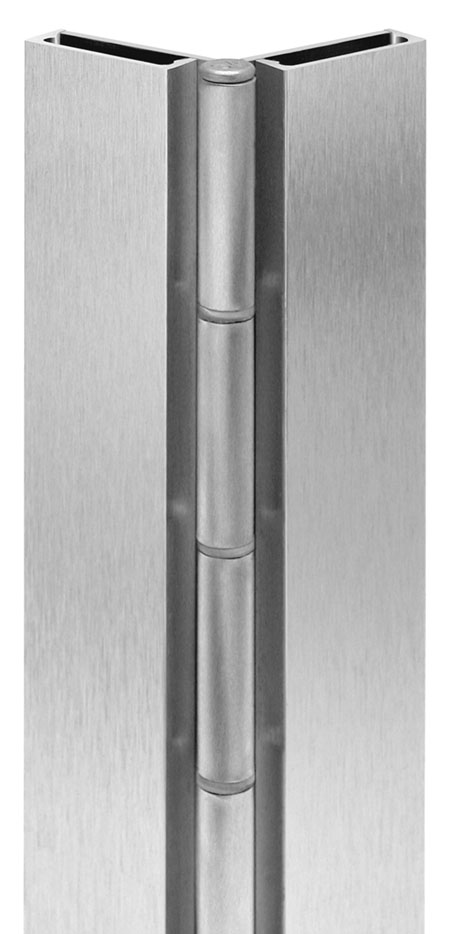

SL302 shown above

Pin & Barrel Full Surface Continuous Hinges

Pin & Barrel Part Number Interchange

SL302

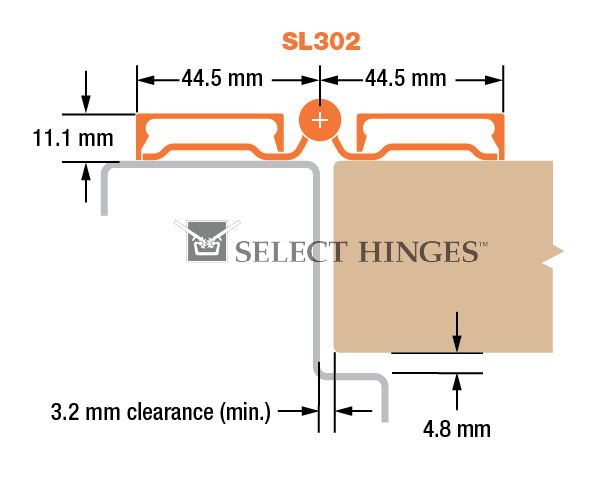

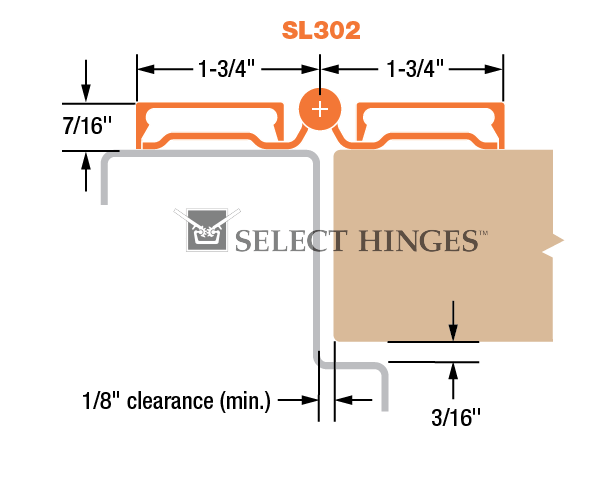

SL302 imperial diagram SL302 metric diagram

Stainless steel.   Tamper-resistant leaf covers.   Flush mounted (no door inset).   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL302 pin & barrel continuous hinges are BHMA Grade 1 certified.

SL309

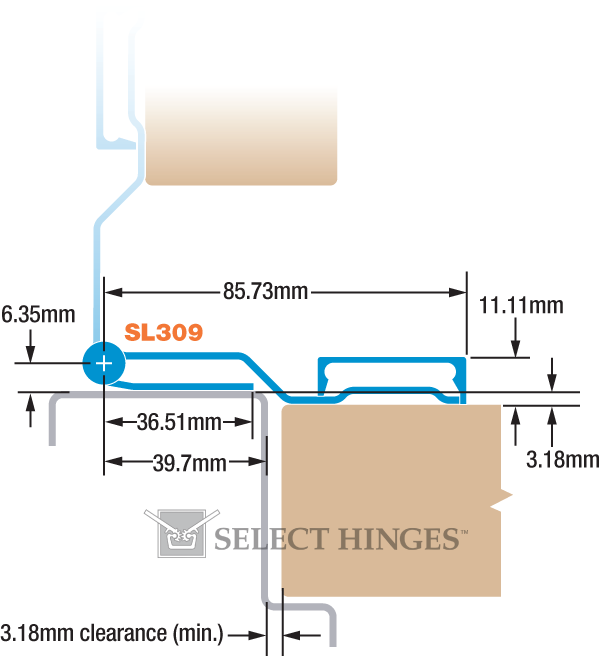

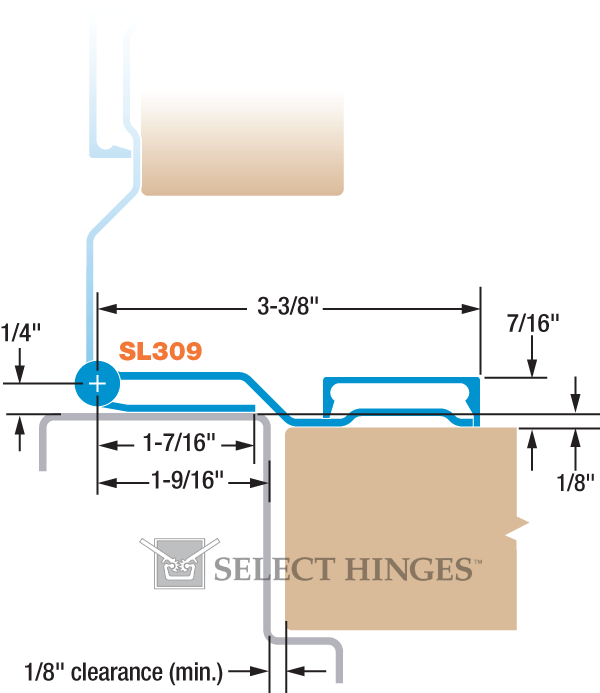

SL309 imperial diagram SL309 metric diagram

Stainless steel hinge with swing-clear action. Tamper-resistant door leaf cover.   1/8"3.17 mm door inset.   For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL309 pin & barrel continuous hinges are BHMA Grade 1 certified.

Pin & Barrel Warranty

SELECT brand Pin & Barrel Continuous Hinges are guaranteed to be free of defects in materials and workmanship for a period of 25 years. No claims for faulty or improper installation, consequent damages, repairs or back charges will be allowed. This warranty does not cover defects or damage resulting from vandalism, abuse, improper maintenance, improper storage, shipping or handling, alteration or removal of the factory-applied lubricant, anodizing or painting of product in the field.
